Architecture

Warning

Please use this tool with care, and remember to deploy agents on dedicated servers that are properly isolated from your production infrastructure.

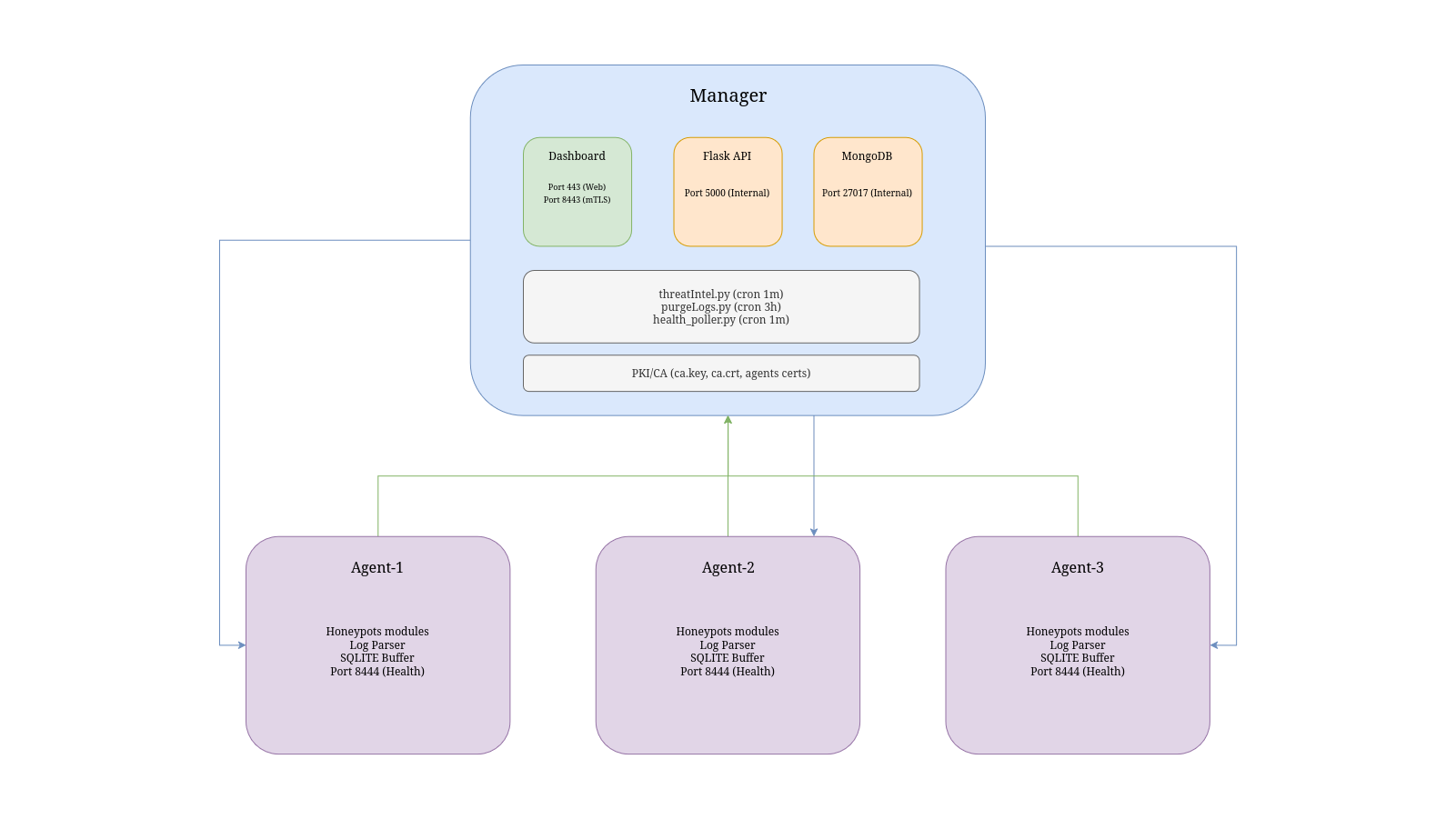

Manager / Agent Model

Melissae uses a distributed manager/agent architecture:

• Manager: Centralizes MongoDB, the Flask API, the dashboard, the rule-based alerting engine, and agent monitoring. Does not run honeypots.

• Agents: Deploy honeypot modules, parse raw logs locally into normalized JSON, and push data to the manager. Expose a health endpoint for the manager to poll.

Communication

Direction	Channel	Port	Purpose
Agent → Manager	HTTPS + mTLS	8443	Log ingestion (POST /api/ingest)
Agent → Manager	HTTPS (token)	8443	Enrollment (POST /api/enroll)
Manager → Agent	HTTPS + mTLS	8444	Health polling (GET /health)
Manager → Agent	HTTPS + mTLS	8444	Remote management (POST /command)

Push model: Agents parse logs locally, buffer them in SQLite, and push batches (up to 500 entries) to the manager every 10 seconds (configurable). If the manager is unreachable, logs accumulate in the local buffer with exponential backoff retry.

Pull model: The manager polls each agent’s health endpoint every minute, collecting container statuses, buffer state, and uptime.

PKI & mTLS

Melissae includes an embedded PKI (no external tools required):

• CA: ECDSA P-384, 10-year validity, auto-generated on install

• Agent certificates: Dual-purpose (client + server), 1-year validity, generated during enrollment

• Manager certificate: Dual-purpose (client + server), 1-year validity, generated on install

• Enrollment: One-time tokens (64 hex chars, 10-minute TTL). The manager generates the token + cert, the agent fetches them via POST /api/enroll

• Revocation: CRL-based, the manager can revoke agent certs and regenerate the CRL

Nginx terminates mTLS on :8443, validates the client certificate against the CA, and injects X-SSL-Client-CN for the API to verify agent identity.

Workflow

1. Honeypots on agents write raw logs to shared volumes.

2. log_parser.py performs incremental parsing: reads new log lines, normalizes to JSON, deduplicates with deterministic hashes.

3. agent_daemon.py buffers parsed logs in SQLite, pushes batches to POST /api/ingest with mTLS.

4. The manager API validates the mTLS identity, sanitizes inputs, and upserts into MongoDB (logs).

5. rule_engine.py (invoked from threatIntel.py) evaluates the YAML rules in rules/ against recent logs, writes per-rule alerts into MongoDB (alerts) and aggregates them into per-IP verdicts (threats), tracking which agents observed each IP.

6. The dashboard consumes /api/logs, /api/threats, /api/agents, /api/alerts and /api/rules.

7. health_poller.py polls agents via mTLS and updates their status in MongoDB.

8. The manager CLI can send remote management commands (POST /command) to agents via mTLS (start, stop, restart, status).

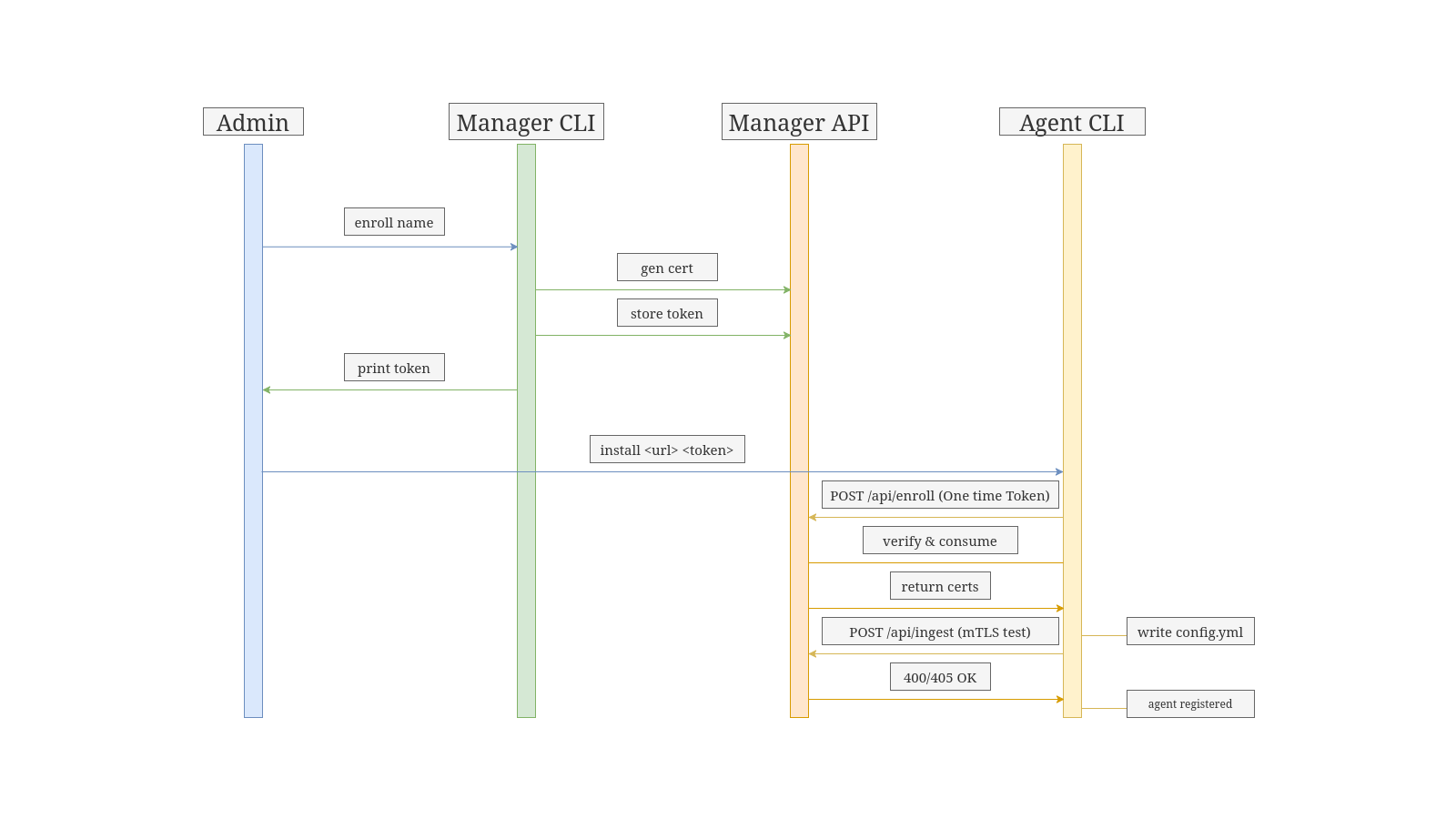

Enrollment Sequence

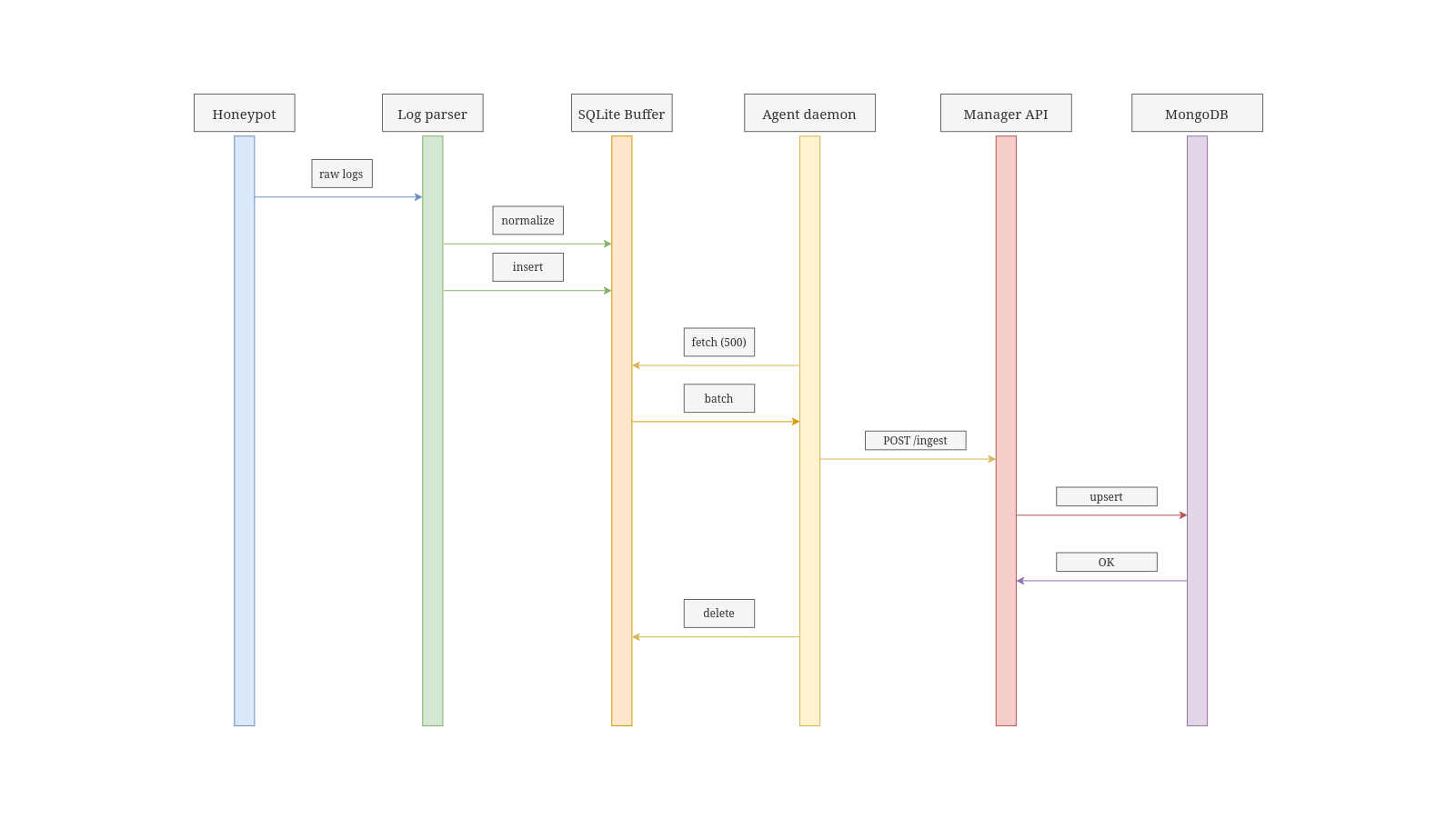

Log Push Sequence

Note

Firewall requirements:

• Manager: open TCP 443 (dashboard HTTPS) and TCP 8443 (mTLS ingestion + enrollment) to the agents and your browser.

• Agents: open TCP 8444 (health endpoint) to the manager only. Honeypot ports (22, 21, 23, 1883, 502, 80/443) should be open to the internet.

• MongoDB (:27017) and the Flask API (:5000) are bound to 127.0.0.1 and never exposed externally.

Scheduled Jobs

On the manager (added during install):

Schedule	Script	Purpose
Every minute	scripts/threatIntel.py	Runs the rule engine and recalculates threat verdicts
Every minute	scripts/health_poller.py	Polls agent health endpoints
Every 3 hours	scripts/purgeLogs.py	Removes stale benign IoCs and logs
